Mini ITX

click on image


                PC 2012


CPU
CPU	Intel i5 3570K
Release date	Apr 2012
Cores	4
Die size	160 mm²
Socket	LGA 1155
Frequency	3.4 GHz / Turbo » 3.8 GHz
Lythography	22 nm
Transistors	1400 Mio
Cache	L1: 4x 32KB _ L2: 4x 256KB _ L3: 6MB
GPU	HD4000 _ 16 EU _ 650 to 1150 Mhz
Memory support	DDR3 up to 1600 MHz
TDP	77 W
Vcore	1.15V

CPU Cooler
Brand	Titan
Speed	700 to 2600 RPM (PWR)
Outline dimensions	96 x 96 x 61.5 mm ─► DC-156B925B/RPW1
	96 x 96 x 48.5 mm ─► DC-156D925B/RPW1
Airflow	12.83 to 47.62 CFM / 21.80 to 80.91 m³/h
Noise level	8 to 33 dB
Voltage	12 V DC
Current	300 mA
Power consumption	3.6 W
Life time	35.000 hours

Mainboard
Model	Intel DH77DF
Form factor	Mini ITX
Dimensions	170 x 170 mm
CPU	i3 i5 i7
RAM	2 x 240 pin DDR3 SDRAM DIMM up to 1600MHz / up to 16 GB
Power	24 pin ATX
PCIe	3.0 x 16
LAN	Gigabit 10/100/1000 Mb/s Ethernet _ Intel 82579V
Audio	Realtec ALC898
I/O	2 x S/PDIF _ 1 Toslink backpannel + 1 internal header
	2 x SATA 3GB/s
	2 x SATA 6GB/s
	1 x eSATA 3GB/s backpanel + 1 eSATA 3GB/s internal
	USB2 = 4 x back panel / 4 x internal
	USB3 = 2 x back panel / 2 x internal
	HDMI
	DVI-I
	Display Port
	2 x PWM (4-pin)

RAM
G.Skill	F3-10600CL9D-16GBNT
CAS Latency	9-9-9 2N
Capacity	2 x 8GB = 16GB
Speed	DDR3-1600 (PC3 10600)
Type	240-pin DIMM
Voltage	1.5V

SSD
Samsung	840 Pro Series
Memory	MLC
Size	128 / 256 / 512 GB
Form factor	2.5 "
Transfer Speed	up to 600 MB/s
Lithography	xx nm
MTBF	1.5 Mio hours

HDD
(F) - RED - WD60EFRX
(E) - RED - WD30EFRX
(D) - RED - WD30EFRX
(C) - GRE - WD20EARX
(B) - GRE - WD10EADS
(A) - GRE - WD10EACS

Graphics Card
Intel HD 4000

PSU
Be Quiet! 480W Straight Power E9 CM

Case
LianLi PC-Q16A

Monitor
Asus MX25AQ

Mouse
Rapoo N3600 / Ninox Aurora / Logitech MX Anywhere 2 / Logitech M335

Keyboard
Apple USB

Printer
Samsung ML-2955
Print Speed	29 ppm
Resolution	1200 dpi
First print out time	8.5 seconds
Duplex Printing	Built-in
Paper Input Capacity	250
Output Capacity	150
Interface	High speed USB 2.0
	Ethernet 10/100 Base TX
	Wireless 802.11 b/g/n
Monthly Duty Cycle	12,000
Power consumption	up to 45 W Standby
	up to 1 W Sleep mode
	up to 320 W Average
Dimensions	348 x 338 x 197 mm
Weight	7,2 Kg

Scanner
Canon LiDE 200 / 210
Type	Desktop color flatbed scanner
Optical resolution	4800 x 4800 dpi
Selectable resolution	25 - 19200 dpi
Max. document size	A4 (216 x 287 mm)
Scan speed	approx 10 sec. @ 300 dpi
Power supply	via USB port
Power consumption	1,4 W Standby
	2,5 W Operating
	11 mW Suspend
Dimensions	250 x 364 x 40 mm
Weight	approx 1,6 Kg

▼

How to Setup Windows from USB drive

Windows 7 Supercharged

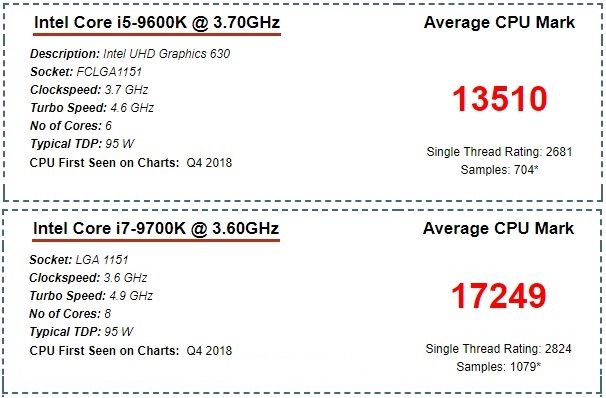

Generation	Codename	Lithogr.	Launch	Example	Base - Turbo	Socket	IGP
1. Gen	Lynnfield	45 nm	Q3 2010	i5 760	2.8 - 3.33 GHz	LGA 1156	Intel HD
2. Gen	Sandy Bridge	32 nm	Q1 2011	i5 2500K	3.3 - 3.7 GHz	LGA 1155	HD 3000
3. Gen	Ivy Bridge	22 nm	Q2 2012	i5 3570K	3.4 - 3.8 GHz	LGA 1155	HD 4000
4. Gen	Haswell	22 nm	Q2 2013	i5 4670K	3.4 - 3.8 GHz	LGA 1150	HD 4600
5. Gen	Broadwell	14 nm	Q2 2015	i5 5675R	3.1 - 3.6 GHz	LGA 1150	HD 6200
6. Gen	Skylake	14 nm	Q3 2015	i5 6600K	3.5 - 3.9 GHz	LGA 1151	HD 530
7. Gen	Kaby Lake	14 nm	Q1 2017	i5 7600K	3.8 - 4.2 GHz	LGA 1151	HD 630
8. Gen	Coffee-Lake	14 nm	Q4 2017	i5 8600K	3.6 - 4.3 GHz	LGA 1151	UHD 630
9. Gen	Coffee-Lake R.	14 nm	Q4 2018	i5 9600K	3.7 - 4.6 GHz	LGA 1151	UHD 630

                PC 2021


CPU
CPU	Intel i7 9700K
Release date	Oct 2019
Cores	8
Die size	--- mm²
Socket	LGA 1151
Frequency	3.6 GHz / Turbo » 4.9 GHz
Lythography	14 nm
Transistors	unknown
Cache	L1: 8x 64KB _ L2: 8x 256KB _ L3: 12MB
GPU	UHD 630 _ 24 EU _ 650 to 1200 Mhz
Memory support	DDR4 up to 2666 MHz
TDP	95 W
Vcore	-.--V

CPU Cooler
Brand	Cryorig C7 Copper
Speed	600 to 2500 RPM (PWR)
Airflow	12.83 to 47.62 CFM / 21.80 to 80.91 m³/h
Noise level	8 to 33 dB
Voltage	12 V DC
Current	300 mA
Power consumption	3.6 W
Life time	35.000 hours

Mainboard
Model	Gigabyte Aorus Z390
Form factor	Mini ITX
Dimensions	170 x 170 mm
CPU	i3 i5 i7
RAM	2 x 2** pin DDR4 SDRAM DIMM up to **00MHz / up to GB
Power	24 pin ATX
PCIe	3.0 x 16
LAN	-
Audio	-
I/O	-
	-
	-
	-
	-
	-
	-
	-
	-
	- x PWM (4-pin)

RAM
G.Skill	Aegis 3000 MHz
CAS Latency	*-*-* *N
Capacity	2 x 16GB = 32GB
Speed	DDR4-3000
Type	288-pin DIMM
Voltage	1.35V

SSD
Samsung	980 M.2 NVMe
Memory	TLC
Size	1 TB
Form factor	M.2
Transfer Speed	up to --- MB/s
Lithography	xx nm
MTBF	--- Mio hours

Graphics Card
Intel UHD 630

PSU
Corsair SF-450

Case
LianLi PC-Q16A

Keyboard
Skyloong SK64
